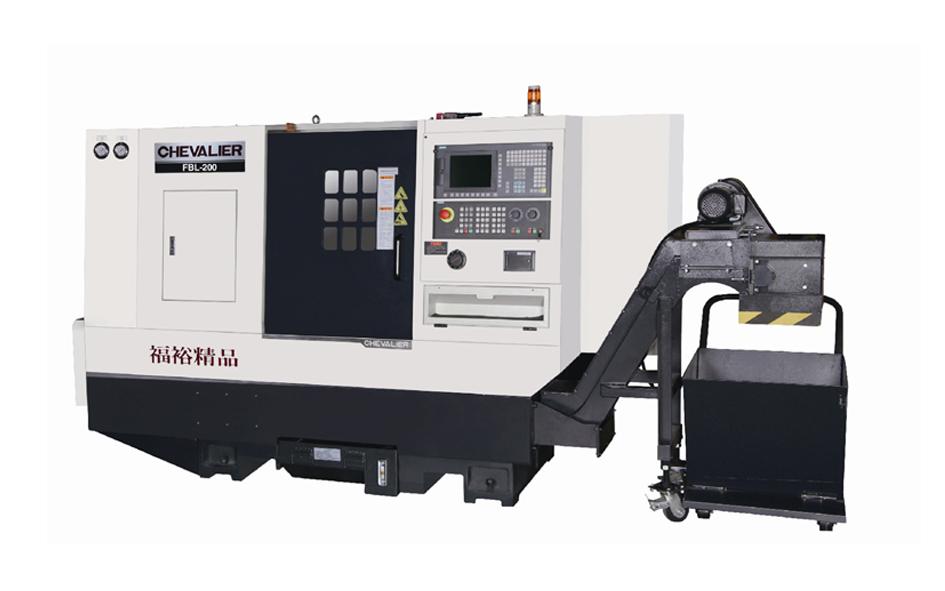

CNC lathe hard rail FBL-200

CNC lathe hard rail FBL-200

Product Features

※ Specializing in the processing of automobile and motorcycle parts and general forgings and castings ※ Designed for interrupted cutting characteristics

※ The hydraulic cam turret with eight knives has a precise and quick tool change positioning time of 0.3 seconds, and the tool change reproduction accuracy is 0.002mm

※ The chip removal can be selected from the side or the rear, and the water tank can be removed from the front for cleaning and flexible use of floor space

※ The main shaft adopts Φ100mm large-diameter high-precision bevel ball bearing and roller bearing, which is suitable for high-speed precision cutting and low-speed heavy cutting

※ Optional comb-type tool holder can double the efficiency and show high added value ※ Standard controller FANUC-0ITF(5)

Product Specifications

※ FBL-200

※ Maximum clamping force/hydraulic pressure: 8800/26.5(kgf/cm²)

※ Bed surface rotation diameter: 470mm

※ Maximum processing diameter: 288mm

※ Spindle speed: 3500RPM

special accessories

※ Workpiece collector

※ High pressure cooling device

※ Air pressure automatic door

※ Oil-water separator

※ Automatic feeder

※ Oil mist collector

※ Workpiece blowing device

※ Elastic collet system

※ Safety anti-collision system

※ Tailstock foot switch

※ Manual tool measuring system

※ Automatic tool measuring system

※ Programmable tailstock spindle

※ Three-color warning light
