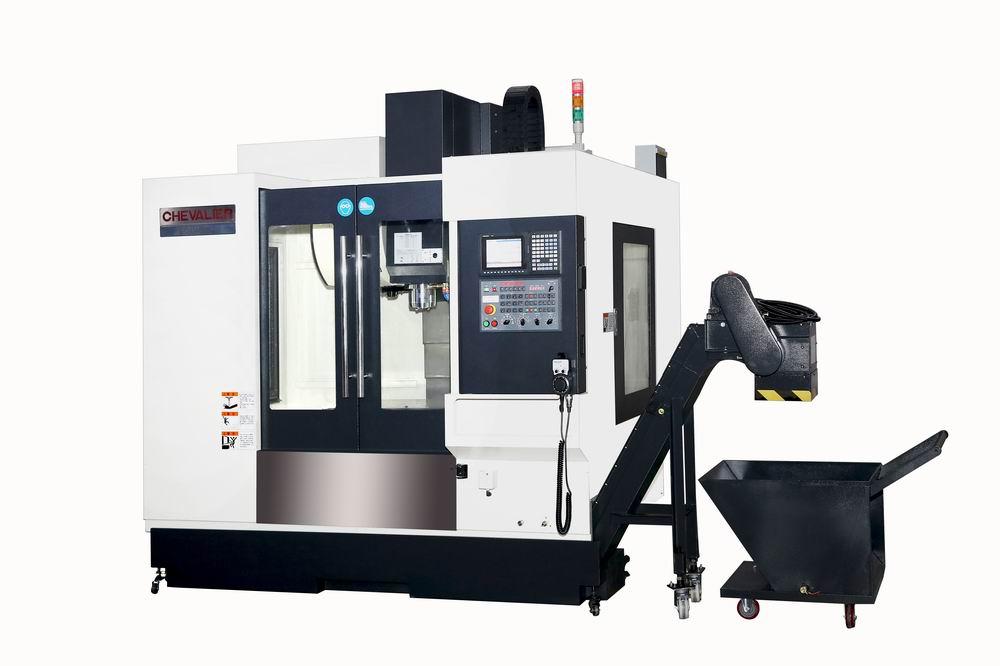

VMC-L line rail-850/1050/1160/1165/1370 (#40) VMC-L

VMC-L line rail-850/1050/1160/1165/1370 (#40) VMC-L

Product Features

This series of 850/1050/1160/1165/1370 (#40) VMC-L bodies are made of high-quality cast iron and homogeneous structure. It can meet the needs of high-precision processing, and is suitable for the processing of medium-sized parts and molds.

※ Unique spindle design, super-large diameter is supported by ABECClass (P4 grade) ultra-precision beveled ball bearings with large span support, so that the spindle can withstand strong radial and axial thrust, and the rigidity is excellent to eliminate the vibration caused by general heavy cutting feel.

※ The automatic blowing function of pressurized gas at the nose of the spindle and when changing tools can effectively block iron filings, oil and water vapor, and ensure the cleanliness and life of the spindle

※ All three axes use JIS C3 grade high-precision ball screws (Φ40), and appropriate pre-tensioning is applied during assembly, and a high-precision laser measuring instrument is used for screw backlash alignment and pitch compensation to ensure motion accuracy

※ The fully sealed shield cooperates with the cooling system, which can effectively cool the high temperature generated by cutting, prevent deformation, maintain the high precision of the workpiece and ensure the safety of the operator.

Product Specifications

※ 850/1050/1160/1165/1370（#40）VMC-L

※ Positioning accuracy: JIS B6338± 0.003mm/300mm

※ Repeatability: JIS B6338± 0.002mm

※ Rapid movement (X/Y/Z): 36/36/30m/min

※ Spindle speed: 850 /1050VMC-L Belt drive: 10000rpm (standard); 8000/12000rpm (special accessories)

※ Spindle speed: 1160/1165/1370VMC-L Belt drive: 8000rpm (standard); 10000/12000rpm (special accessories)

※ Number of tools: 24 arm type

special accessories

※ 32 tool arm chain tool magazine

※ Automatic tool length measurement

※ Complete set of the fourth axis

※ Workpiece measuring device

※ Oil-water separator

※ Spindle center water outlet device

※ Oil mist recovery device

※ Air conditioner cooler device

※ Stabilizer
