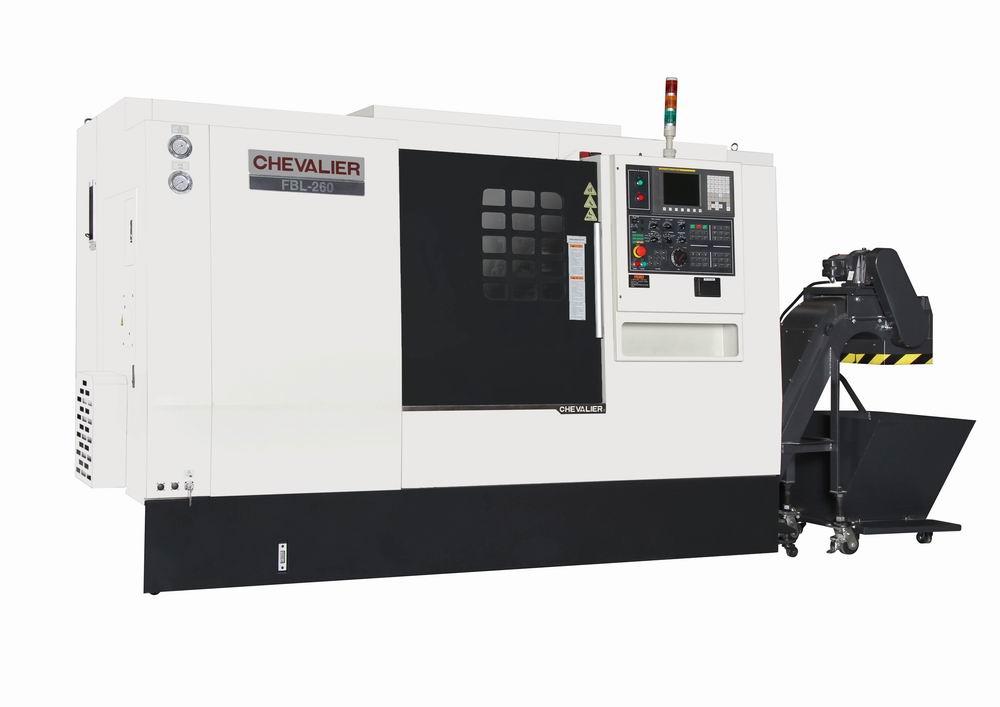

CNC lathe hard rail FBL-260(L)/260B(L)
Product Features
※ Specializing in the processing of automobile parts and forgings
※ The machine bed adopts the inclined-back 45-degree design method, and is cast with high-strength cast iron. Through aging treatment, the rigidity and stability are guaranteed.
※ Hydraulic cam turret with 12 knives, accurate and quick tool change positioning time is 0.3 seconds, and the tool change reproduction accuracy is 0.002mm
※ The main shaft adopts Φ120mm large-diameter high-precision angled roller bearing, which is suitable for low-speed heavy cutting.
※ The main shaft power adopts Japanese FANUC servo motor. (with B series motor)
※ Both axes adopt C3
※ The mobile high water storage dynamic chip water tank is equipped with an automatic chip remover to clean chips and shorten the chip cleaning time. The host is equipped with 50Bar high-pressure flushing water, and with the center water outlet tool, it can effectively break the processing iron chips.
Product Specifications
※ FBL-260(L)/260B(L)
※ Spindle accuracy: 0.003mm
※ Bed surface rotation diameter: 570mm/530mm
※ Maximum processing diameter: 310mm/370mm
※ Spindle speed: 3500RPM
special accessories
※ Workpiece collector
※ Air pressure automatic door
※ Oil-water separator
※ Automatic feeder
※ Oil mist collector
※ Workpiece blowing device
※ Tailstock foot switch
※ Manual tool measuring system
※ Automatic tool measuring system
※ Programmable tailstock
